1438299-4
Manufacturer:
TE Connectivity
Mfr.Part #:
1438299-4
Datasheet:
Description:

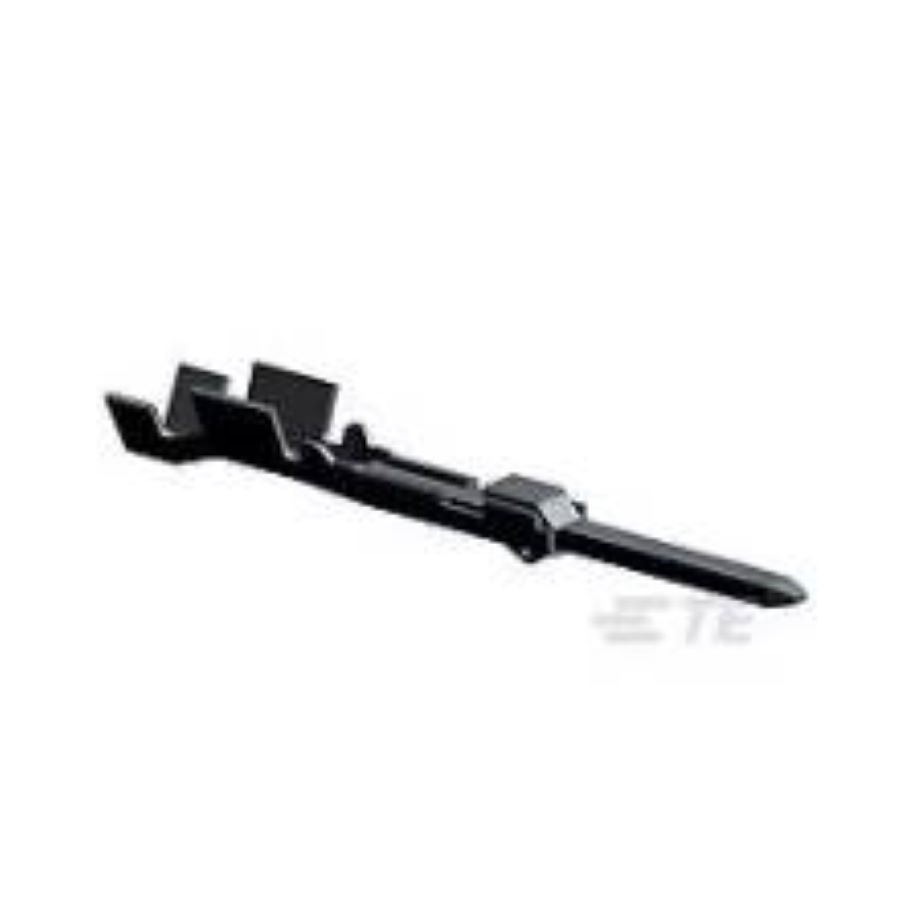

Automotive Connectors Cable Male 20 AWG to 18 AWG
| Parameter | Value |
|---|---|
| Length | 24.4 mm |
| Termination | Crimp |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating | 500 V |
| Radiation Hardening | No |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Copper |
| Current Rating | 8.2 A |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Gender | Male |
| Shielding | Unshielded |
| Connector Type | Connector, PCB, Signal |
| Wire/Cable Gauge | 20 AWG |
| Wire Gauge (Max) | 20 AWG |
| Wire Gauge (Min) | 5 AWG |
| Insulation Diameter | 2.06 mm |
| Mating Tab Width | 990.6 µm |
| Tab Thickness | 640 µm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
| Packaging | Reel |
| RoHS | Compliant |
| Wire Gauge Range | 20 AWG to 18 AWG |
Stock: 6365
Distributors
pcbx
pcbxUnit Price$0.13344
Ext.Price$0.13344
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.13344 | $0.13344 |
| 10 | $0.06672 | $0.66720 |
| 50 | $0.05132 | $2.56600 |
| 100 | $0.03948 | $3.94800 |
| 500 | $0.03713 | $18.56500 |
| 1000 | $0.03492 | $34.92000 |
| 3000 | $0.03303 | $99.09000 |
| 5000 | $0.03230 | $161.50000 |
| 10000 | $0.03159 | $315.90000 |
| 30000 | $0.03090 | $927.00000 |
| 50000 | $0.03022 | $1511.00000 |
| 100000 | $0.02956 | $2956.00000 |
| 150000 | $0.02891 | $4336.50000 |
